Air Sampling for Hazardous Dust and Welding Fumes

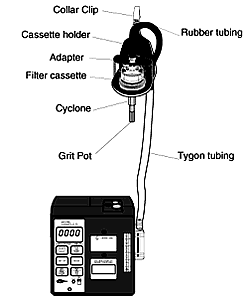

Typical Air Sampling Equipment and Air Sampling Set-Up
Respirable Hazardous Dust and Fume Sampling
- Air is drawn through the rubber hosing at a constant flow rate ( Typically 1.9 l/min to 2.2 l/min ) via a micro-processor

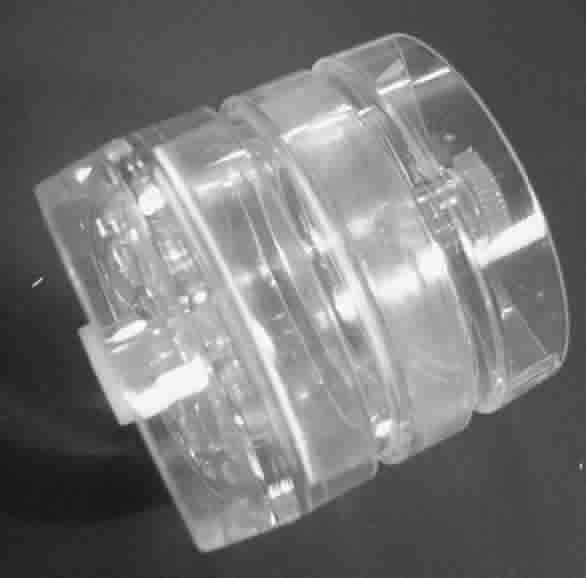

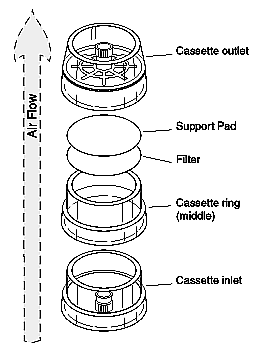

- The sampling head consists of a Cyclone and a sealed cassette with a filter paper inside.
- The cyclone separates dust and
particles into the respirable fraction ( 10uM or smaller ).
- Dust and welding fumes
are trapped on the filter paper.
- The cassettes are re-sealed with stoppers and returned to the laboratory for dust and welding fume analysis.
Hazardous Gases and Fume Sampling
Hazardous Fumes like PAH's and Diesel Fumes etc. are sampled much in the same way as dust and welding fumes.
The only difference being instead of a filter paper a small absorbent tube with active carbon or Tenax
® sorbent tubes replace air sampling cassettess.
The tubes are then re-sealed and returned to the laboratory were they are analysed via Gas Chromatography.
SMI Analytical can assist you with sampling equipment and sampling accessories, as well as your laboratory analysis requirements.
Disclaimer: The liability of SMI ANALYTICAL is limited to the cost of analysis. SMI ANALYTICAL indemnifies
itself from any legal action which may be instituted against it due to supplied data. SMI ANALYTICAL accepts
no responsibility whatsoever for any results released, however used. No part of this document may reproduced
in part or in full unless permission from SMI ANALYTICAL is granted in writing. This document may not be altered
in any way whatsoever and is printed without correction.
